Example 10
This example is implementing a dynamic / asynchronous mode.
It is enabled in graph.py with:
conf.asynchronous = True
The FIFO sizes are doubled with:
conf.FIFOIncrease = 100

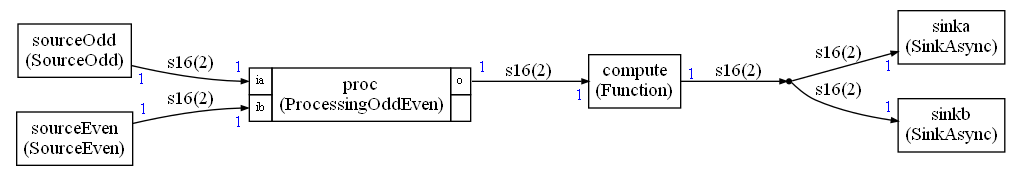

The graph implemented in this example is:
There is a global iteration count corresponding to one execution of the schedule.
The odd source is generating a value only when the count is odd.
The even source is generating a value only when the count is even.
The processing is adding its inputs. If no data is available on an input, 0 is used.
In case of fifo overflow or underflow, any node will slip its execution.
All nodes are generating or consuming one sample but the FIFOs have a size of 2 because of the 100% increase requested in the configuration settings.
